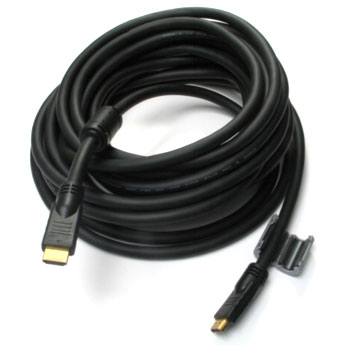

Silver cable HDMI male / male

HDMI cable with 24 AWG conductors OFC silver plated

23-010>015 S

Description

External dimensions: Ø 10 mm

Replaced by the series 23-0xx HH

Producer
R.S. Elettronica

Support
R.S. Elettronica

Warranty years

Code	Feat.	Finish	Availability	Price	Quantity
23-010 S	10mt.	Black	discontinued	~~109,80~~ -31% 76,25 €	not buyable
23-015 S	15mt.	Black	discontinued	~~152,50~~ -34% 100,65 €	not buyable

cable, hdmi, the cores, ofc copper, Plated, silver, special, long distances, male

More Details

Electrical characteristics (temperature 80 ° C - Voltage 30V)

Conductor resistance: 20 ° C 24 AWG: 93.25 Ohm / Km
Crosstalk: <-26dB
Impedance: 100 ± 10 Ohm
Attenuation:
- 0.3 ~ 825 MHz <8 dB / cable
- to 0.825 ~ 2.475 GHz <21 dB / cable
- to 2.475 ~ 4.125 GHz <30 dB / cable
Obliquity of delay:
- within a couple ≤302 ps / 10M
- between pairs ≤2.42 ns / cable

Features sheath

Tensile strength:
- New: minimum 1500 PSI
- Used: minimum 70%
Elongation:
- New: minimum 100%
- Used: 65%
Test hot and cold:
- No break
- Deformation: maximum 50%
Flame retardant standards: UL VW-1

The characteristics are given by the respective manufacturers and are subject to change without notice, are not liable for any errors
The fact sheet was translated by Google Translate
